Note: A Windows PC or laptop is required to configure this product

1. Connect the doorbell to the 12V power source
2. Connect an ethernet cable from your windows PC to the ethernet port of the Viper doorbell.
3. Set your PCs ethernet adapter to IP address 192.168.226.250, to do this:

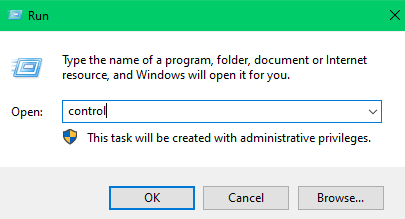

   1. Press 'Ctrl + R' simultaneously on the keyboard, a run dialogue box will appear.
   2. Type the word control, and click 'OK'

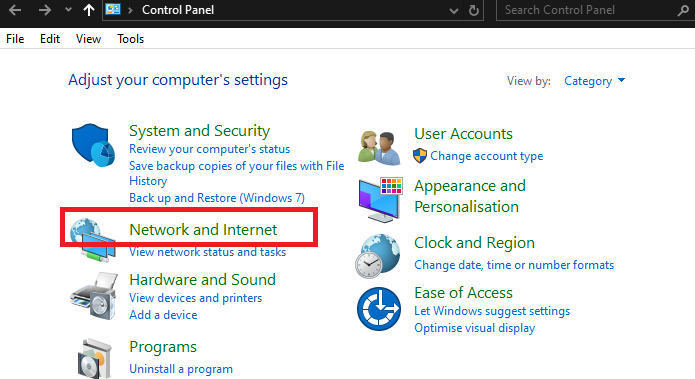

   3. The control panel will open. Click network and internet.

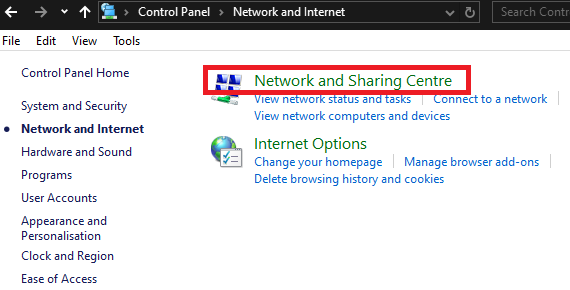

   4. Click 'Network and sharing Centre'

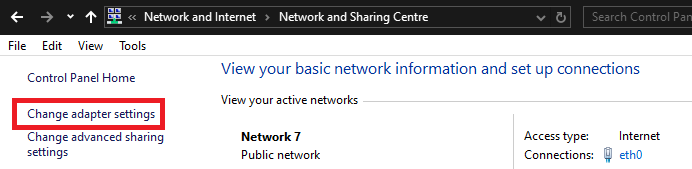

   5. Click 'change adapter settings'

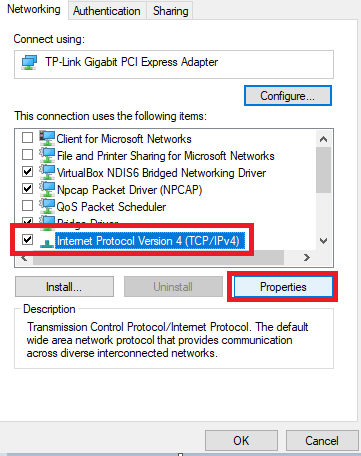

   6. Locate the ethernet adaptor which is connected to the doorbell, right click it and select 'properties'

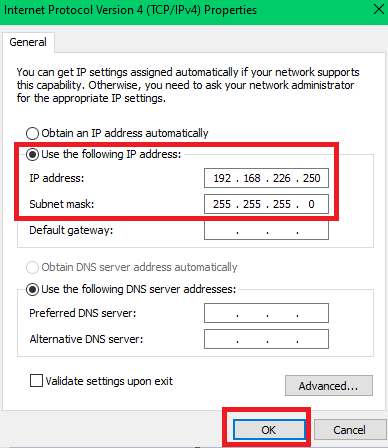

   7. Select 'Use the following IP address:'. Enter the IP address 192.168.226.250, and subnet mask 255.255.255.0 then click OK

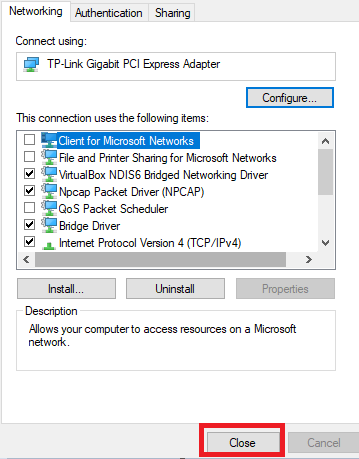

   8. Ensure to click close on the ethernet adaptor properties, this will apply the changes.
4. (Continued). Once your PC IP is set, open a web browser and in the URL bar enter the IP 192.168.226.201

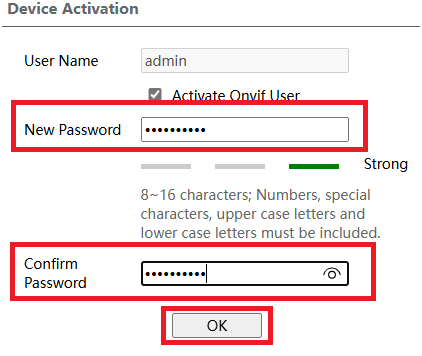

5. The doorbells web page will load, accept the privacy agreement and activate the doorbell by creating an admin account password.

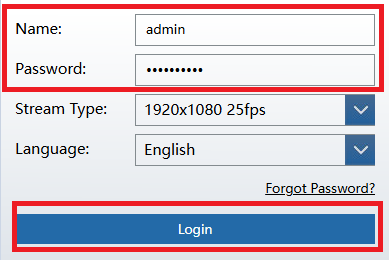

6. You will be presented with the login page. Login to the doorbell using admin account password created.

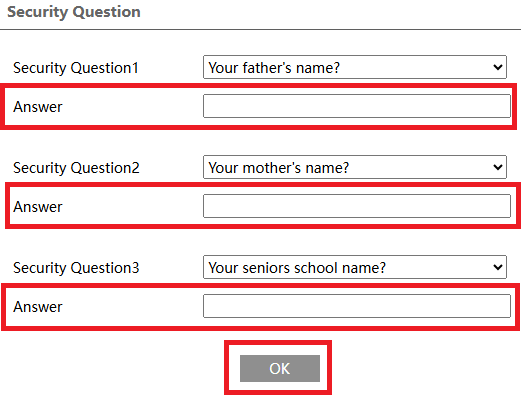

7. You will then be prompted to enter some answers for the password reset security questions. Enter some answers and click 'OK'.

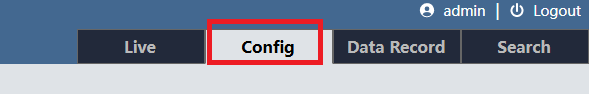

8. Once logged in, in the top right click 'config'

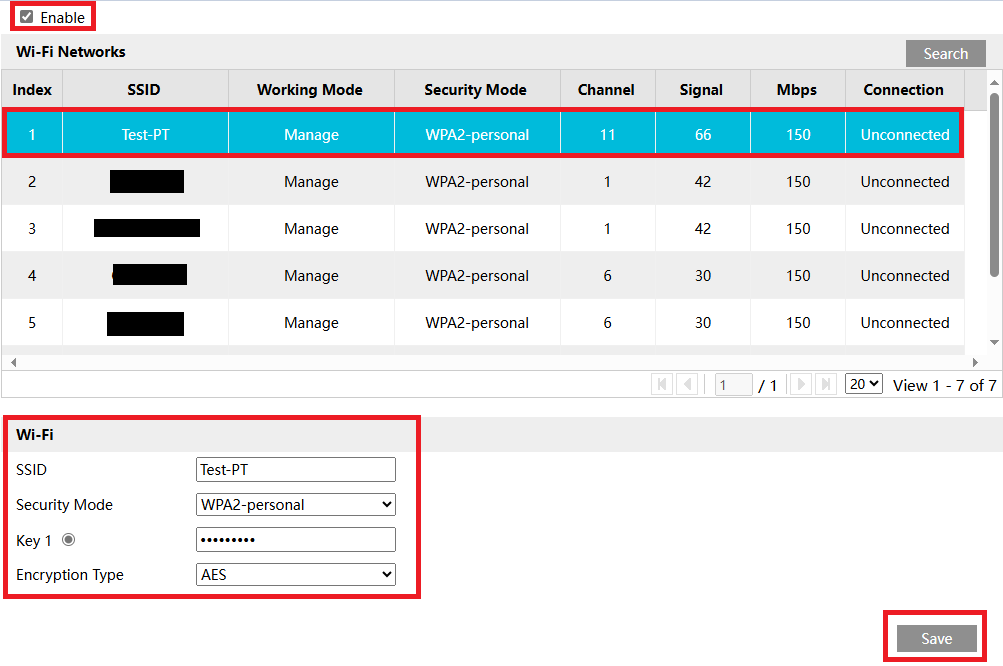

9. Enable Wi-Fi. Select your Wi-Fi network, and enter the authentication credentials below. Once done click 'Save'

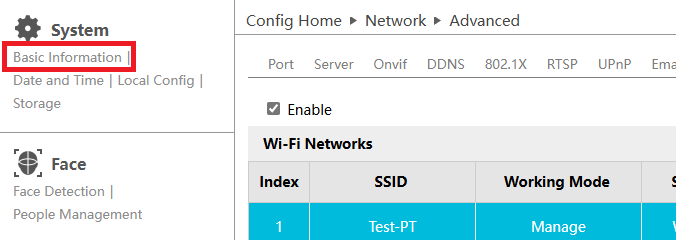

10. Now, under 'system' go to 'basic information'

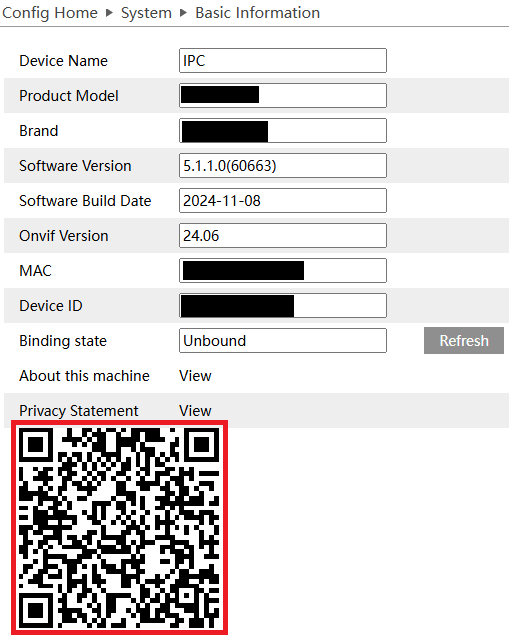

11. On the basic information page is the App QR code, scan this on the Superlive Plus App.  Ensure the app is logged in to a Superlive Plus account.

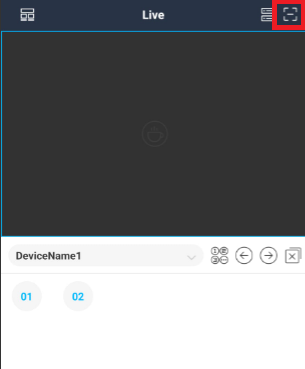

12. Open Super Live Plus, click on the scanner icon, top right.
13. Once the QR code is scanned you will see the 'add' page. Do not press 'add' right away, disconnect the ethernet cable between the doorbell and your PC/laptop - this will trigger the doorbells Wi-Fi connection to activate. After disconnecting the ethernet wait a minute or two, then press add. Once the app connects enter the doorbells login credentials, you should now be connected and setup.
